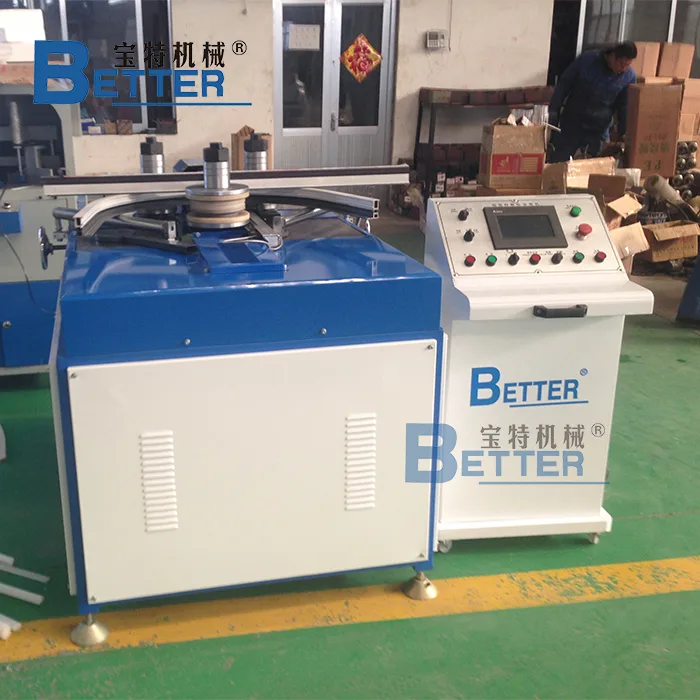

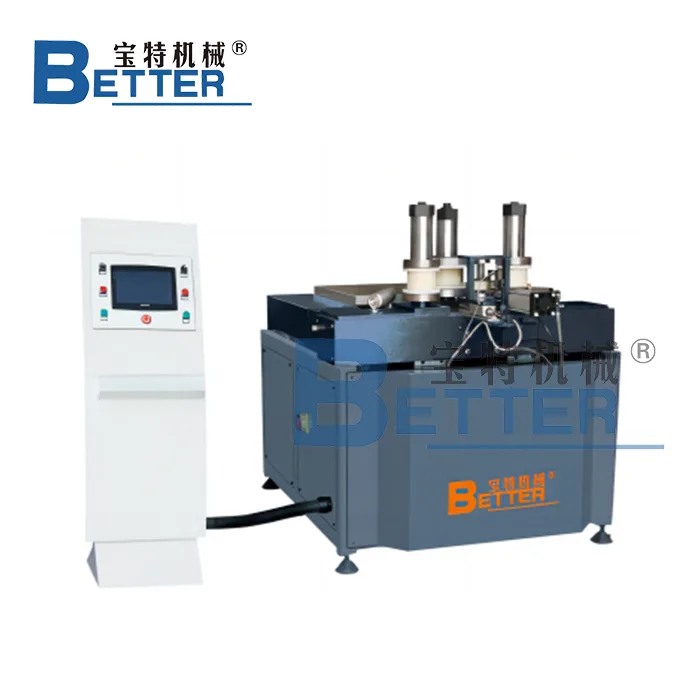

Aluminium Profile Bending Machine

Video

Aluminium profile bending machine: https://youtu.be/B5mTXgLlc8Q

Features

1. Application: This CNC Aluminium Profile Bending Machine is designed to handle a wide range of materials, including standard aluminum profiles, thermal break aluminum (thermal barrier profiles), aluminum-plastic composite profiles, rectangular steel tubes, and stainless steel pipes. It is widely used in curtain wall, window and door, furniture, and industrial applications.

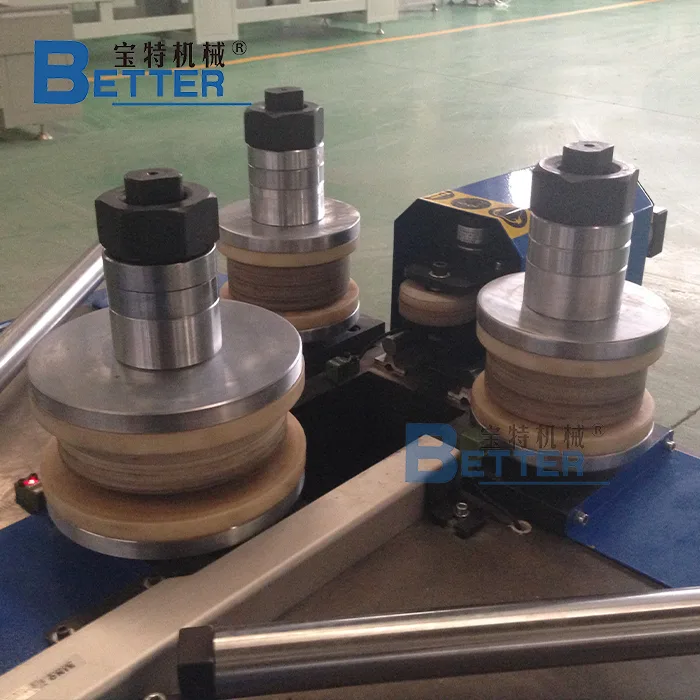

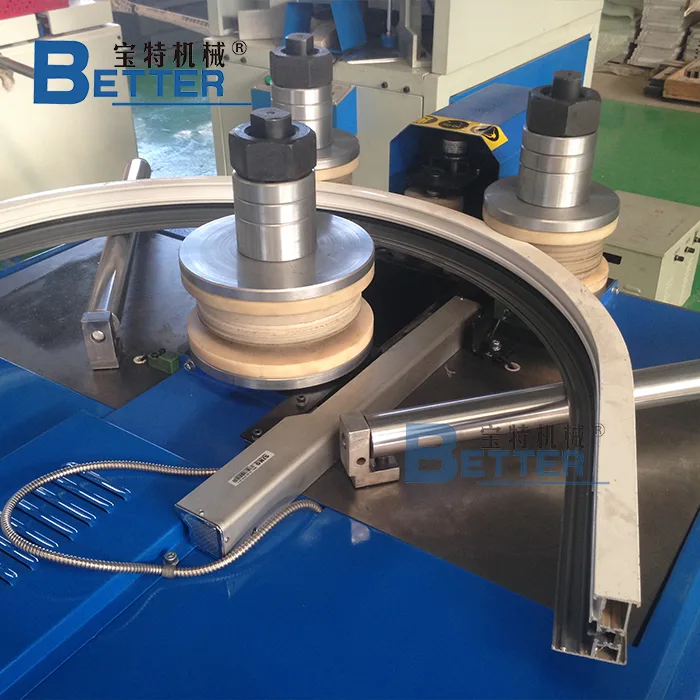

2. CNC Control System: Equipped with a high-precision CNC control system, the machine adopts a three-roller drive design, controlled by PLC and operated via a user-friendly touchscreen interface. The system ensures consistent bending accuracy. (Other options base on requirements are available)

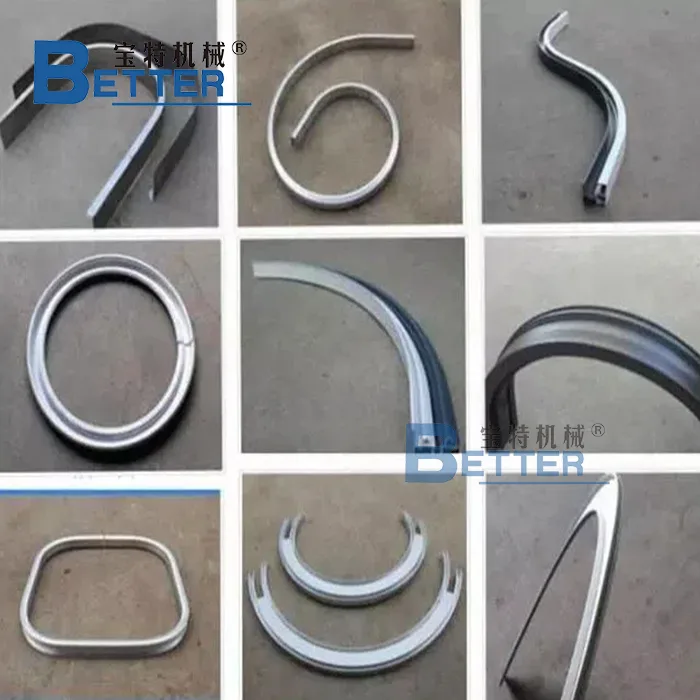

3. Versatile Bending Capabilities: This machine enables one-time automatic bending as well as segmented or multi-pass bending. It supports the shaping of various curves such as C-shape, U-shape, S-shape, and full circles. Additionally, it features smart material loss compensation and arc calculation, improving both efficiency and material utilization.
4. High Precision Performance: With bending accuracy of up to ≤0.01mm, it is ideal for handling complex arcs and tight curvature requirements, ensuring precise, repeatable results even with difficult bending jobs.
5. Y-Axis Precision: The Y-axis ensures high positioning accuracy. Even when the spindle moves forward and backward, it maintains reliable repeat positioning for consistent results.
6. X-Axis Power: The powerful torque from the X-axis rotary transmission system allows for smooth processing of large-section profiles, making it suitable for heavy-duty industrial applications.
7. Robust Structure & Design: This machine features a sleek industrial design with reinforced mechanical strength and high structural stability. It resists deformation under high tension, making it a long-lasting and reliable solution for demanding bending tasks.
8. Customizable Molds: All bending molds are custom-designed according to the profile cross-section and technical drawings provided by the customer, ensuring a perfect fit and optimal forming quality.
9. Options: 4-roller double servo type, DXF import drawing import type aluminum bending machine

Specifications

Related Machines

The aluminium profile bending machine can work with:

• Single head aluminum cutting machine
• Industrial-level aluminum profile cutting machine
• Aluminum profile milling drilling machine with tool change function
