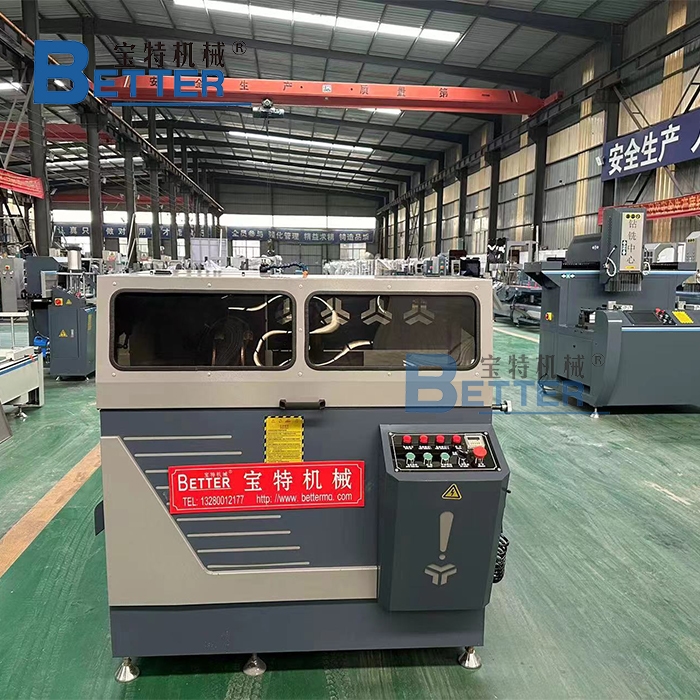

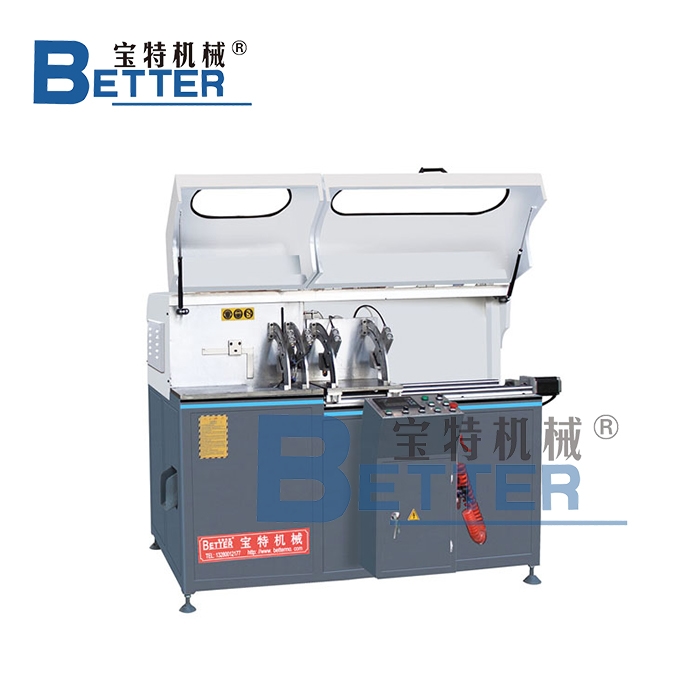

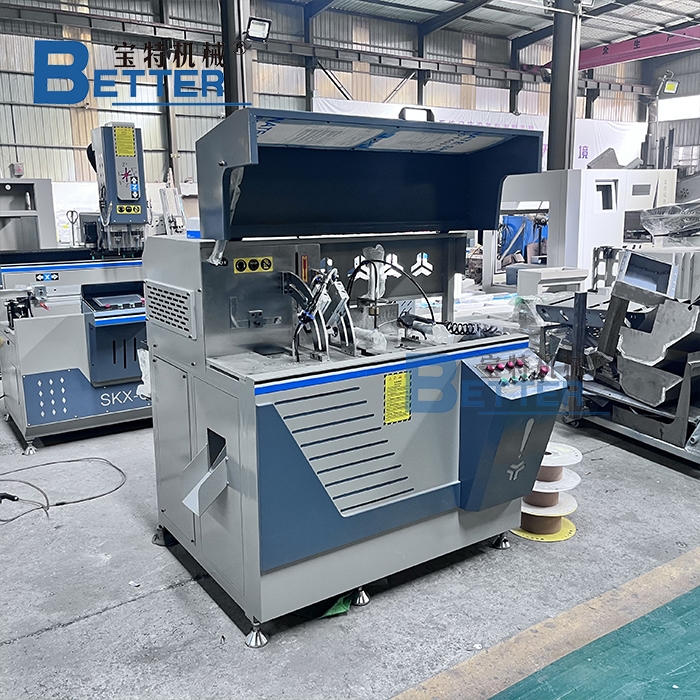

Aluminum Profiles Automatic Cutting Machine
Model: LJJ-500
Warranty: 2 years
Cutting angle: 90°
Blade: 450mm or 500mm
Automatic feed type
Other options: CNC controlled type, big cutting range type
Voltage: To be negotiated, customize according to needs
Warranty: 2 years
Cutting angle: 90°
Blade: 450mm or 500mm
Automatic feed type
Other options: CNC controlled type, big cutting range type
Voltage: To be negotiated, customize according to needs
Automatic feeding cutting saw, Automatic feeding aluminum cutting saw, Automatic feeding PVC cutting machine, Single head aluminum cutting machine, Full automatic aluminum profile cutting machine
Product Details
Video
Aluminum Profiles Automatic Cutting Machine: https://youtube.com/shorts/amRmc3iPAFA?si=kT9gVFO9ZvXx66a-
Features
- Application: This Aluminum Profiles Automatic Cutting Machine is specifically designed for 90° cutting of aluminum profiles with automatic feeding function.
- Efficient Automatic Feeding:The PLC-controlled automatic feeding system ensures smooth and stable material handling, making it well-suited for mass production with minimal manual intervention.
- Cutting Counter: An automatic counting function tracks the total number of cuts in real time, helping operators manage batch production more efficiently.
- High-Precision Saw Blade: Equipped with hard carbide saw blade, the machine delivers high cutting accuracy and long-lasting durability, reducing the need for frequent blade replacements.

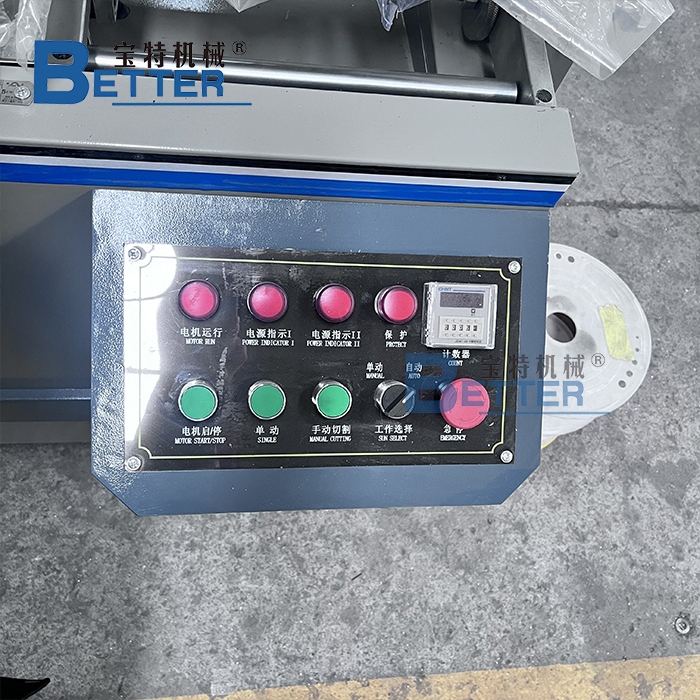

- Simple and Reliable Operation:With its user-friendly control system, the machine offers reliable performance, easy operation, and low maintenance, making it a smart choice for daily manufacturing needs.

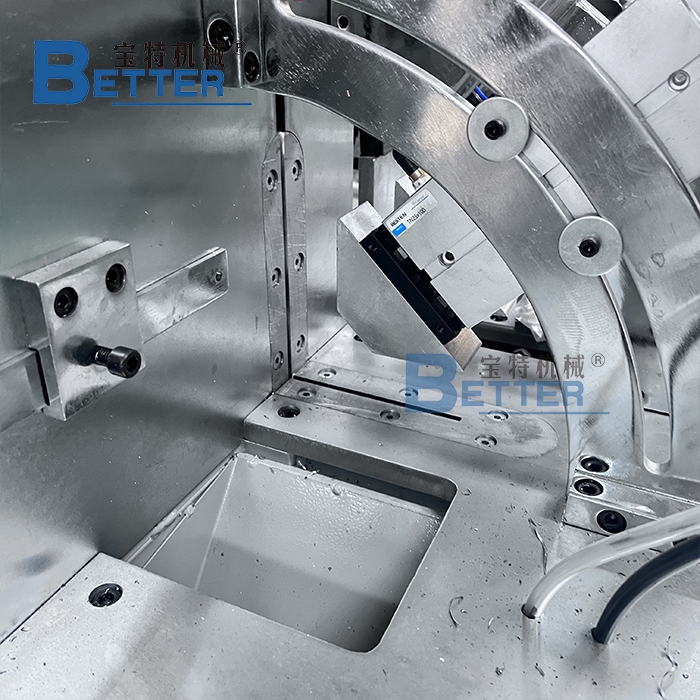

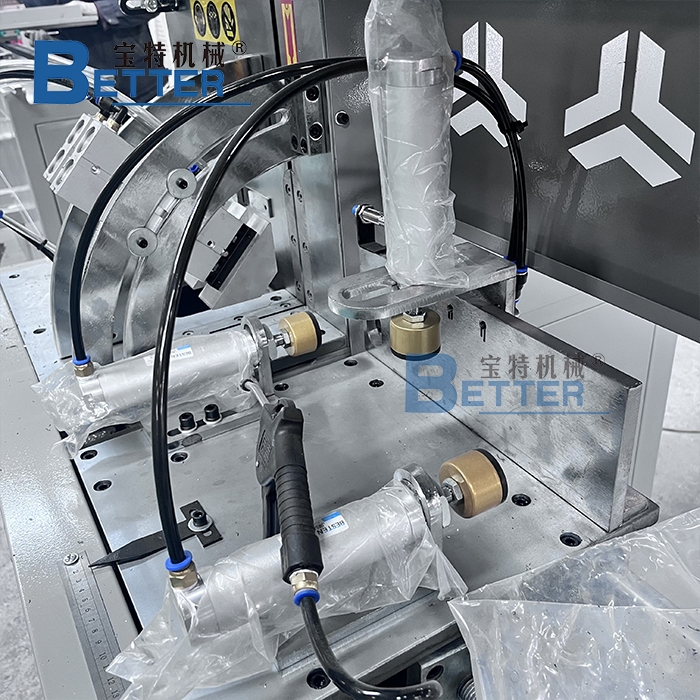

- Stable Clamping System:Horizontal and vertical pneumatic clamping systems hold the profile securely during cutting, ensuring clean and precise cuts without material shifting.
- Profile Rack: Standard profile rack at one side of the machine to hold the profile.
- Options: CNC type fully automatic aluminum cutting saw, industrial level big cutting range cutting saw for aluminum profiles, aluminum single head cutting saw
Specifications
| Item | Value |
| Power input | 380V 50HZ 3P, base on request |
| Motor power | 3KW |
| Saw blade specification | 450mm/500mm |
| Cutting angle | 90° |
| Air pressure | 0.6-0.8Mpa |
| Machine size | 4200*1400*1600mm |
| Weight | 600KG |
