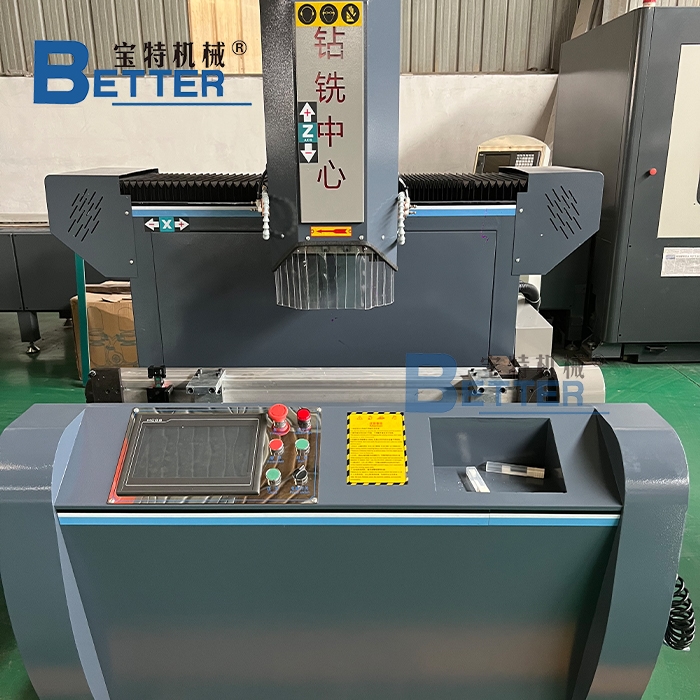

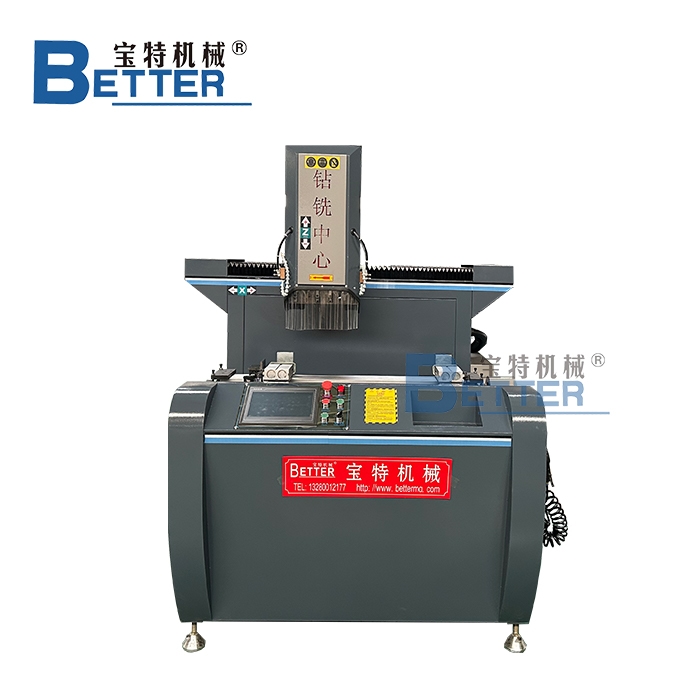

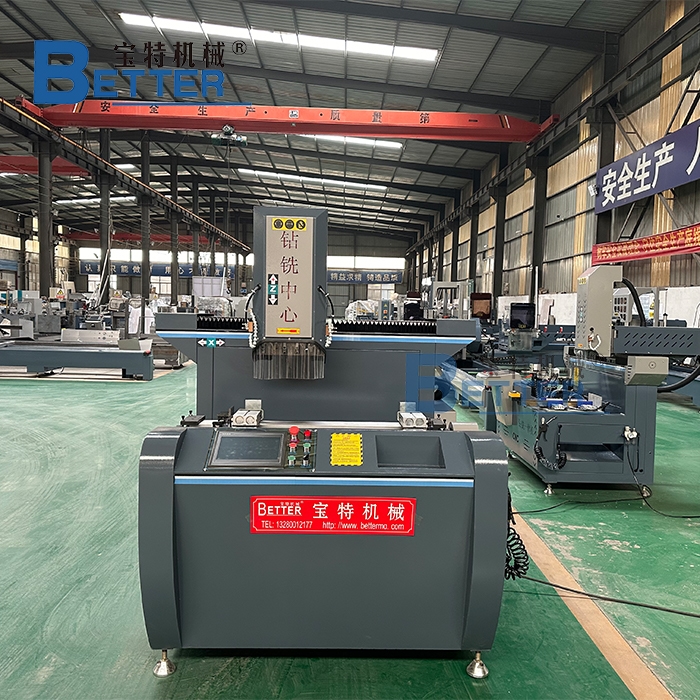

CNC Copy Router Machine

Features

1. Application: CNC Copy Router Machine is suitable for curtain wall profile, industrial aluminum, rail transit profile, non-ferrous metal, aluminum & uPVC window profile, minimalist window profiles. Processing various holes, like hardware fitting holes, installation holes, lock holes and etc.
2. 3 surface process: Workbench rotation to fulfill 0°, 90°and -90°surface processing.
3. CNC control system: Equipped with an industrial-grade computer system, straightforward interface to help user use the machine easily and quickly.
4. Automatic spray system: Automatic spray during processing, effectively extending the life of tools and ensuring the cleanliness of the profile surface.
5. High-speed electric spindle: It adopts imported brand high-speed electric spindle, which has stable rotation, low noise and strong processing ability.
6. Flexible clamping devices: Equipped with horizontal clamping devices, suitable for clamping profiles of various sizes, firmly fixing and ensuring processing accuracy.

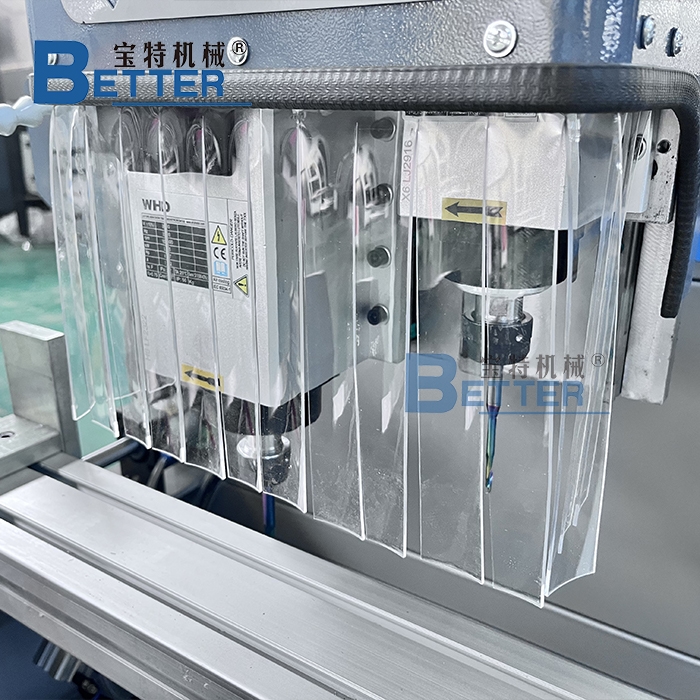

7. High-efficiency process: Two heads that are equipped with different diameter tools, no need to change tool, improve efficiency. (One head type is optional)
8. High-precision process: It adopts high-precision linear guide pair, ball screw and servo motor, which ensures stable operation and high processing accuracy.
9. Safety protection: The Z-axis is equipped with a high-speed brake motor to prevent any potential damage caused by sudden power failure or head slippage, ensuring the operation and worker safety.
10. Options: One head copy routing, two head copy routing, different x way stroke type (600mm, 1500mm, 2000mm, 2500mm, 3000mm, 3500mm……), automatic copy router,template copy router

Video

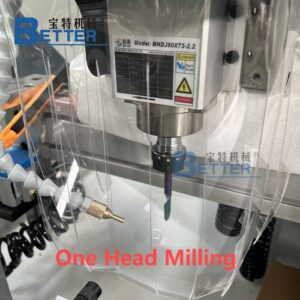

One head CNC Copy Router Machine: https://youtube.com/shorts/pBuwI16Z_Es?si=vaWrPamm40YjE3_b

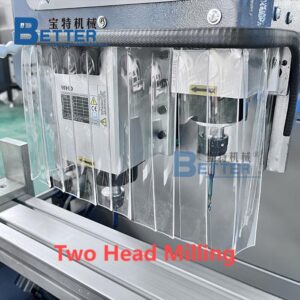

Two head CNC Copy Router Machine: https://youtube.com/shorts/4AhgqY_dS78?feature=share

Specifications

Other Related Aluminum Window Machines

• Aluminum Cutting Saw
• Aluminum End Milling Machine
• Aluminium Window Crimping Machine
• Aluminium Bending Machine

Our Factory

Founded in 1997, Jinan Better Machinery specializes in manufacturing aluminium window machines, uPVC window machines, and thermal break processing equipment. With strong R&D and global service since 2004, we provide complete solutions for aluminium profile fabrication and insulating glass production. Trusted worldwide, Better Machinery delivers efficiency, precision, and long-term reliability for window and door manufacturers.

https://windoormachine.com/about-us/introduction
