CNC Double Head Cutting Machine

Model: LJZ-CNC-500x4200
Cutting angle: outward 45°and 90°(inward 45°is optional)
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
45 and 90 degree double head aluminum cutting saw
Cutting machine for aluminum and upvc
Aluminum window machines

CNC double head cutting machine with 45 and 90 cutting degrees, Aluminum cutting saw, UPVC cutting machine, Aluminum window making machines, uPVC window machines

Features

This CNC double head cutting machine can be used for cutting aluminum and uPVC profiles. Various diameters of the saw blade to meet different cutting requirements. Diamond saw blade or alloy saw blade type. It offers high precision, efficiency, and consistency in cutting operations. It also ideal for complex and repetitive tasks, reducing human error and material waste. Feel free to contact us for more information!

Application: This CNC double head cutting machine is used for cutting aluminum profile, uPVC profile and curtain wall profile.
Multi-functional: The CNC double head cutting saw has 4 kinds of cutting modes. It is suitable for normal mode cutting, short pieces cutting, auto-feeding cutting, as well as work-list cutting.
Diamond blade: It is equipped with two 500mm diamond saw blade for stable and reliable cutting operation to ensure smooth and beautiful cutting results. (450mm, 550mm or 600mm blade is optional)

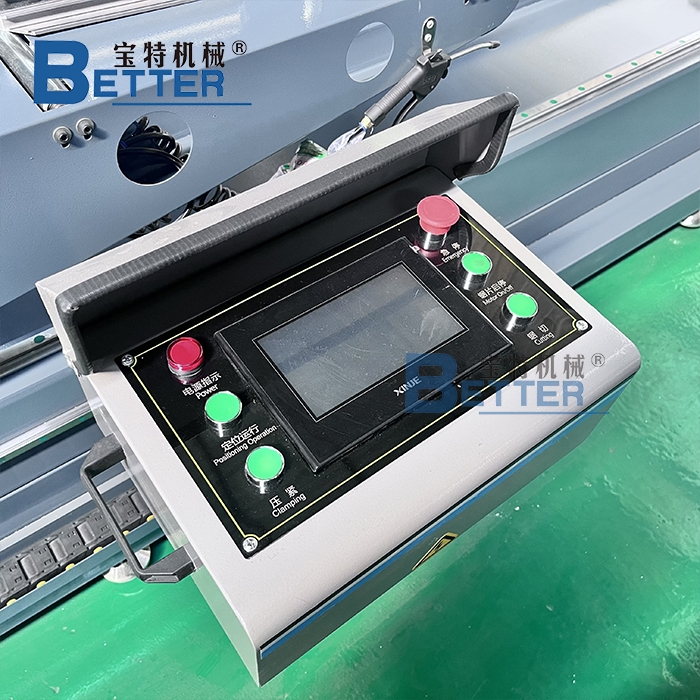

CNC control: Industrial-grade software suitable for door and window profile processing, simple and easy to operate, reducing learning time and cost.
Efficient operation: Automatic sizing, angle changing and cutting, greatly reduce manual intervention and improve operation and cutting efficiency.
Pneumatic clamping: Horizontal and vertical clamping devices to tightly clamp the profile during cutting to ensure stable operation.
Protection shield: Automatic shield protection during cutting, ensure the operation safety of workers.
Option models: Single head cutting machine, normal type double head cutting machine, digital display type aluminium cutting machine, heavy aluminum cutting saw

Specifications

Model number	LJZ-CNC-500×4200
Voltage input	Base on request
Cutting angle	outward 45°(\ /) and 90° (Inward 45° is optional)
Total power	7.5KW
Saw blade	450mm/500mm/550mm/600mm
Cutting length	450mm ~4200mm
Cutting width	0-150mm
Air pressure	0.6-0.8Mpa
Machine size	500017001900mm
Weight	1800KG
