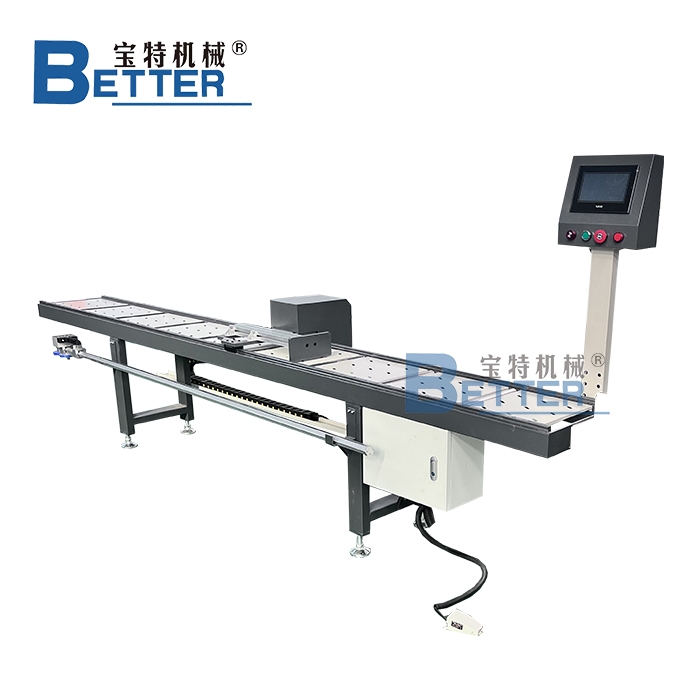

Digital Measuring Table
Model: BTLD-01
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
CNC Length Stop
Digital Saw Length Stop
CNC Measuring Conveyor
Automatic Sizing Table
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
CNC Length Stop
Digital Saw Length Stop
CNC Measuring Conveyor
Automatic Sizing Table

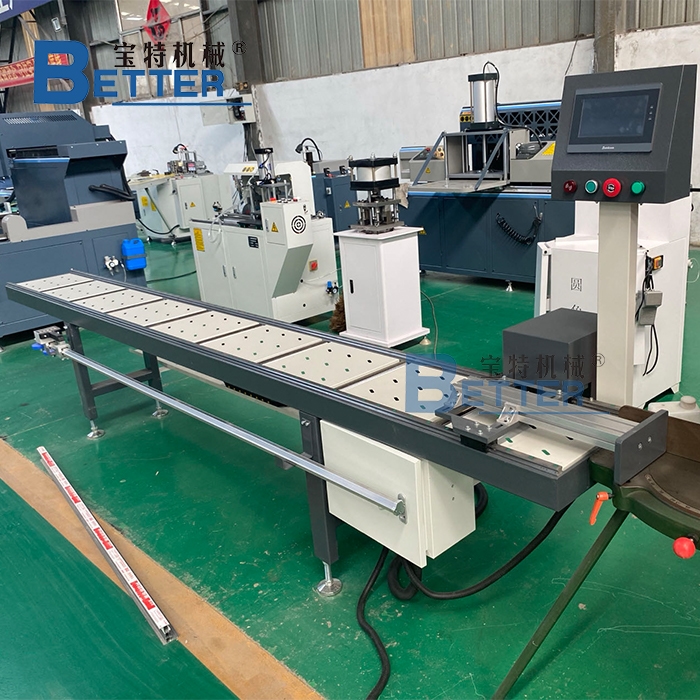

It can connect with single head cutting machine to cut profiles and materials. It can also with bluetooth ruler.
Product Details
Video
Digital measuring table with bluetooth ruler:Â https://youtube.com/shorts/ZaLSoM8ZrFU
Features

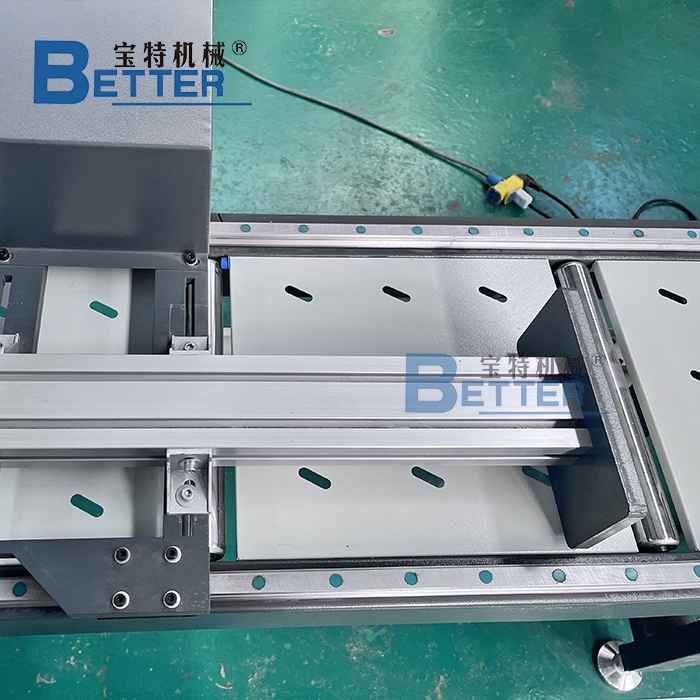

- Application: Connected with a single-head cutting saw. It automatically positions the cutting length, significantly enhancing cutting accuracy and operational efficiency.
- Servo-Controlled: Equipped with a high-performance servo motor and gearbox, the system delivers smooth and accurate positioning.

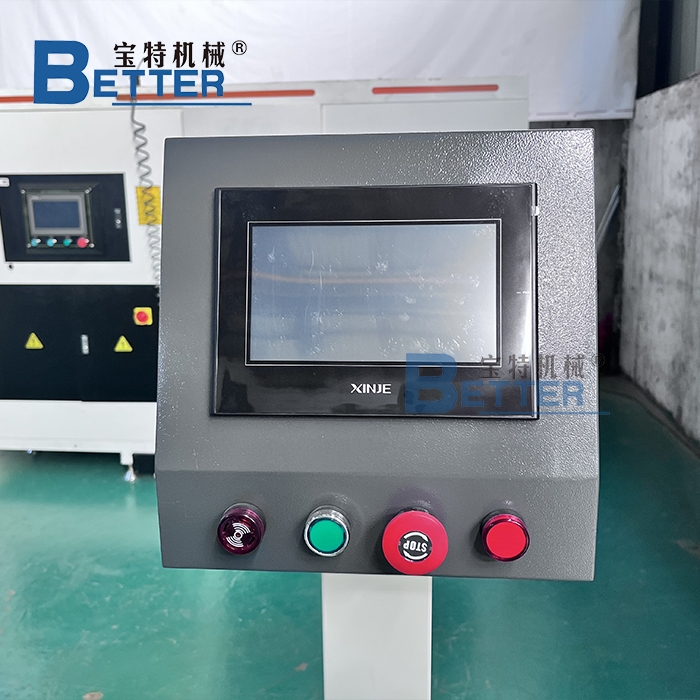

- Advanced Control Panel: It features a user-friendly 7-inch touchscreen display, integrated with a PLC for easy to use.
- Length Customizable: The standard rack length is 3.5m long with an effective stroke of 3m. The length can be customizable to meet customers’specific requirements.

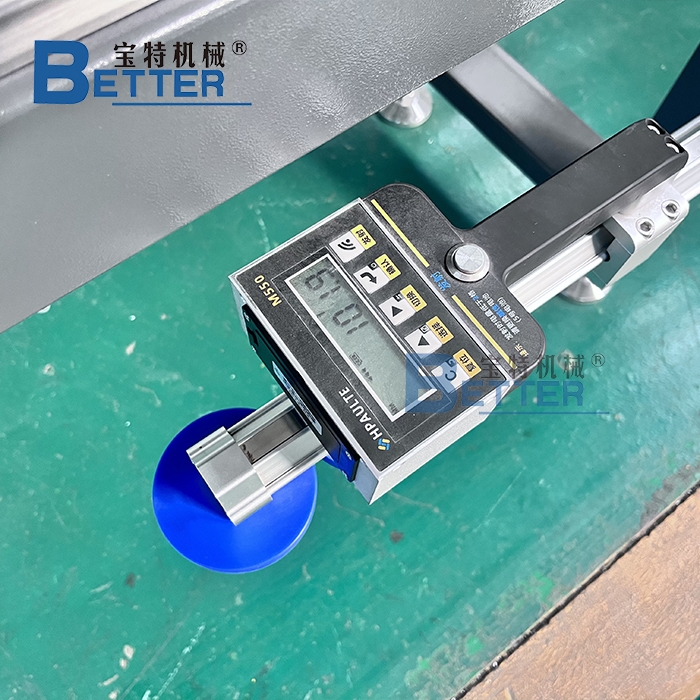

- Bluetooth Integration: It works with bluetooth ruler (optional), allowing wireless control and faster length setting, forming a complete Bluetooth CNC length stop solution.
Specifications
| Item | Value |
| Power input | 380V/220V 50Hz, base on request |
| Motor power | 1.5KW |
| Machine size | 3500*1700*500mm |
| Weight | 200KG |
Related Machines
The digital measuring table can be connected with cutting machine
- 500mm single head cutting machine
- 550mm single head cutting saw
- 600mm various angle cutting machine
