Aluminum Window Machines

Model: LJZY-450x3700 (Digital Display Type); LJZB-450x3700 (Standard Normal Type)
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
Blade: carbide-tipped saw blade (diamond blade optional)

450mm Aluminum double head cutting machine
Economical type aluminum cutting saw
Double head aluminum cutting machine price

Double head aluminum cutting saw with good price and quality from Jinan Better Machinery, 450mm saw blade economical type cutting saw for aluminum profiles, Good choice for aluminum window machines, aluminum window factory

Video

Aluminum window machines, 450mm double head cutting saw https://youtube.com/shorts/LUxyUkFnsJY?feature=share

Features

Application: Widely used for cutting aluminum and uPVC profiles.
Cutting Angles: Supports 90° and outward 45° cutting.
Digital Display System: Optional digital length display available. It ensures high positioning accuracy and minimizes operational errors.

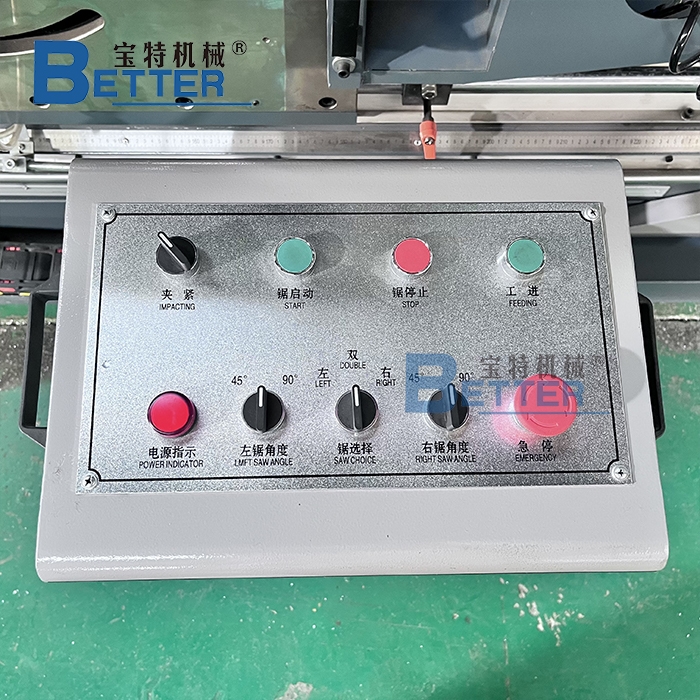

User-Friendly: The intuitive control panel and clearly labeled buttons make the saw easy to operate, even for first-time users.
Saw Blade Options: Equipped with high-quality carbide saw blades for clean and precise cuts (diamond saw blade optional).
High-Precision Cutting: Powered by a 3kW spindle motor, ensuring smooth blade rotation and precise cutting.
Automatic Spray System: The built-in automatic spray system effectively extends blade life and keeps the cutting surface clean.

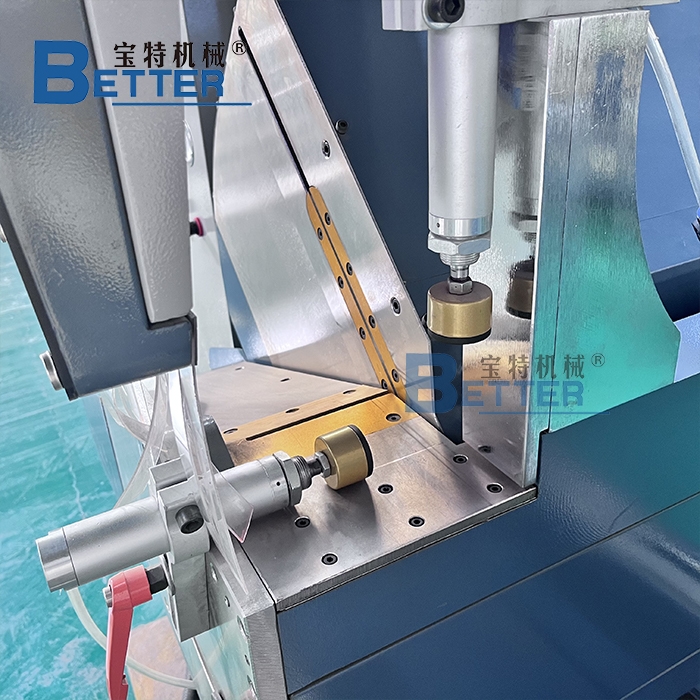

Pneumatic Clamping System: Features both horizontal and vertical pneumatic clamps to securely hold profiles in place, ensuring high cutting accuracy.
Options: Single head cutting machine, CNC double head cutting machine, automatic feeding cutting saw.

Specifications

Item	Value
Model	LJZY-450×3700 (Digital Display Type); LJZB-450×3700 (Standard Normal Type)
Power input	380V 50HZ 3P, base on request
Motor power	2*3KW
Saw blade specification	450mm/500mm/550mm/600mm
Cutting angle	90°and outward 45°
Air pressure	0.6-0.8Mpa
Machine size	450017001900mm
Weight	1600KG
