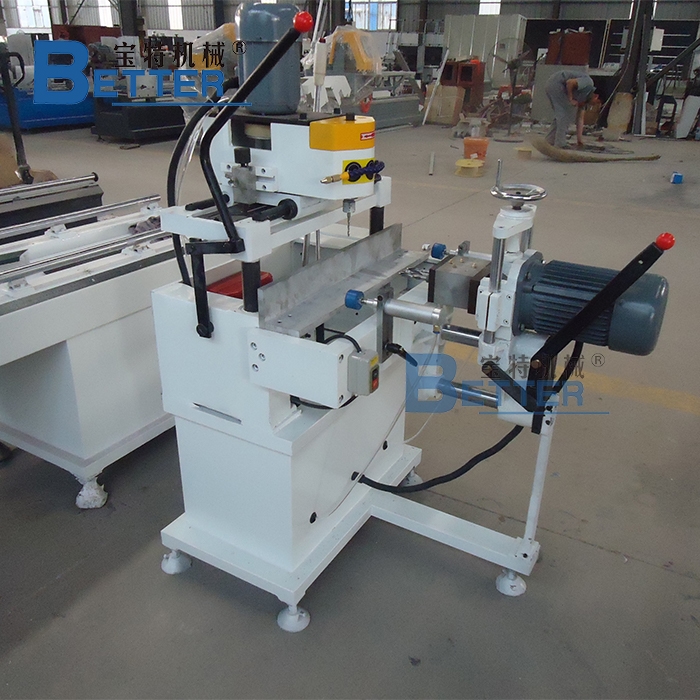

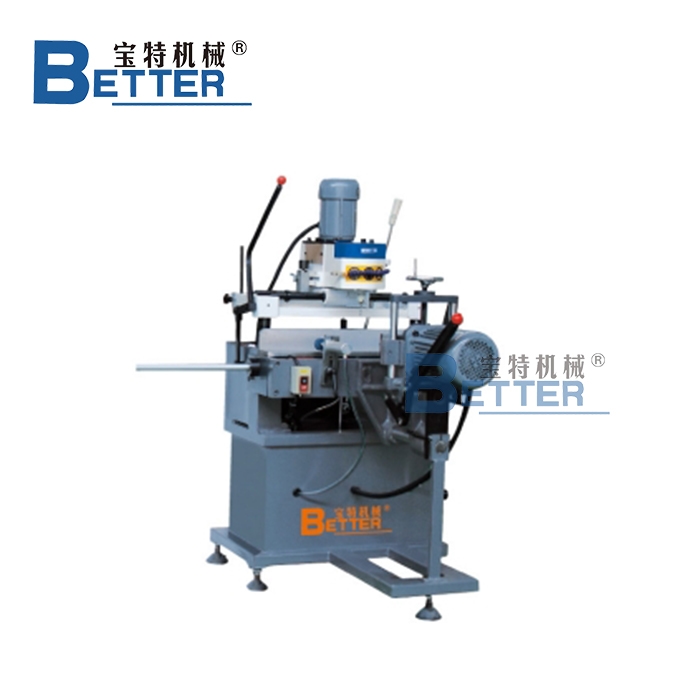

Copy Router Milling Machine For UPVC Windows
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
Lock Hole Copy Router With Triple Drill
uPVC Window Making Machines
uPVC Window Lock Hole Copy Router
Features
The copy router milling machine, also called triple drill lock hole milling machine is designed for milling lock slots and handle holes in uPVC window and door profiles. It allows precise milling of various holes for hardware installation. One of the essential machine for PVC window production. The lock hole milling machine supports both horizontal and vertical milling, improving efficiency and consistency in mass production.
- Application: It is used for automatically millinghandle holes, European-style grooves, and various other holes or slots for uPVC window profiles.

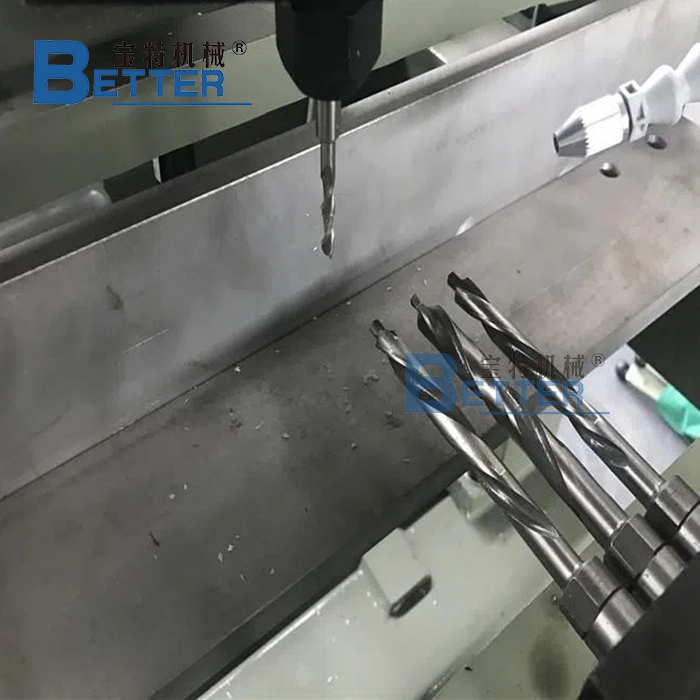

- Triple drill: The horizontal triple drilling and vertical profile milling are equipped with special tables to achieve the desired results in one go.

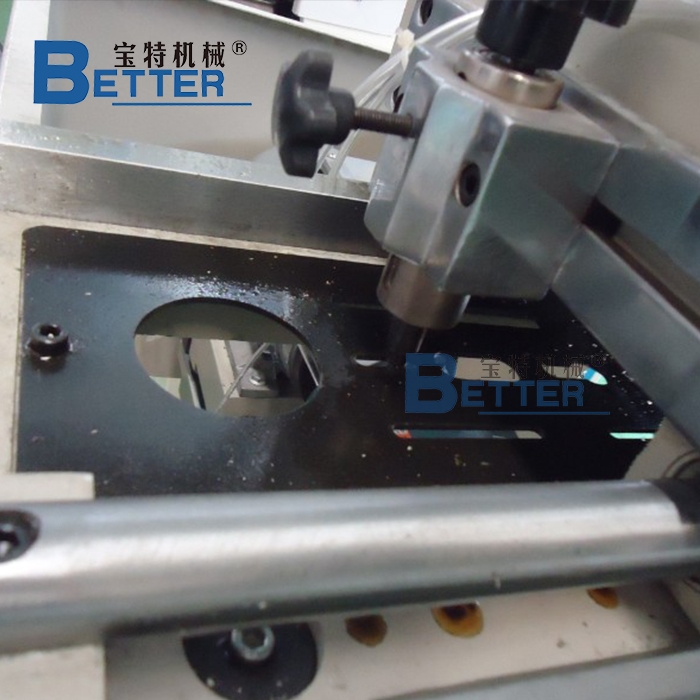

- Universal templates: The copy router milling machine uses universal templates for 1:1 ratio milling.
- Pneumatic clamping: Ensures stable milling of profiles with pneumatic clamping.
- Easy height adjustment: Handwheel allows easy adjustment of milling height, with automatic locking for safe operation.
- Options: CNC copy routing machine
Video
https://youtube.com/shorts/HnP5o4PylFU?feature=share
Specifications
| Model | SZJ01 |
| Power input | Base on request |
| Motor power | 2.2KW |
| Milling section | 290*90*100mm |
| Tool diameter | Φ8mm Φ5mm |
| Machine size | 870*850*1500mm |
| Weight | 300KG |
Delivery & Package
We use plastic wrap to package the machine. Then, according to the delivery method (LCL or FCL) to delivery the machines.
