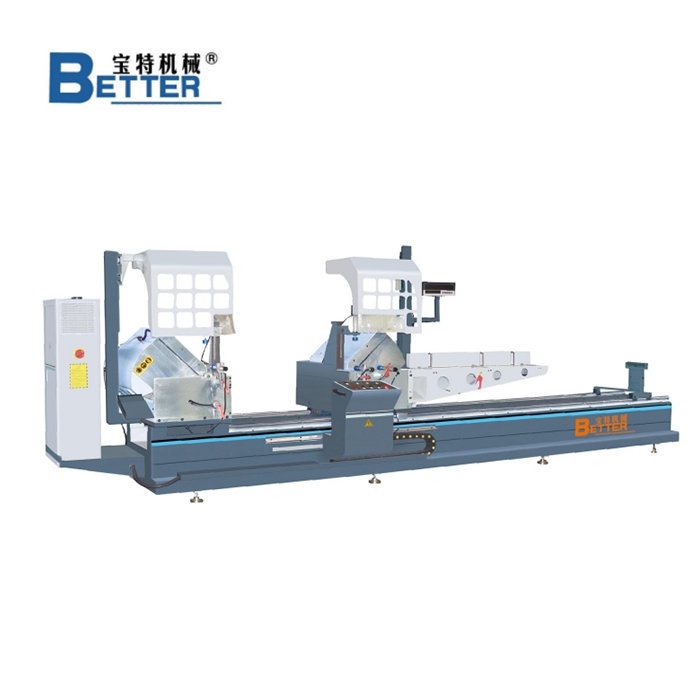

Aluminum Double Head Mitre Saw (Digital Display Type)

Features

1. Application: The Double Head Mitre Saw is widely used in cutting aluminum and uPVC profiles, suitable for different industrial fields, such as window and door production, curtain wall, light frame, industrial aluminum field and etc.
2. Cutting angle: 90°and outward 45°cutting (inward 45°is optional).

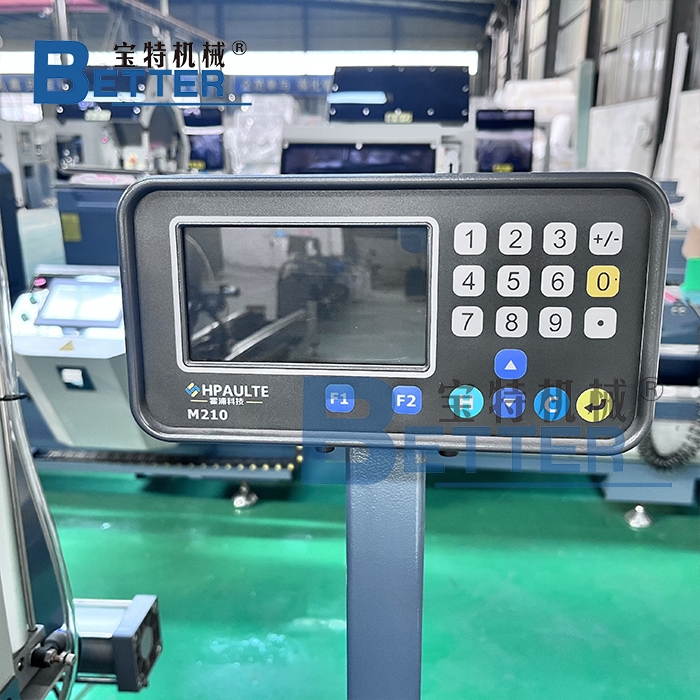

3. Digital Display System: Equipped with a digital length display for fixed cutting, the machine ensures high positioning accuracy and minimizes operator error.

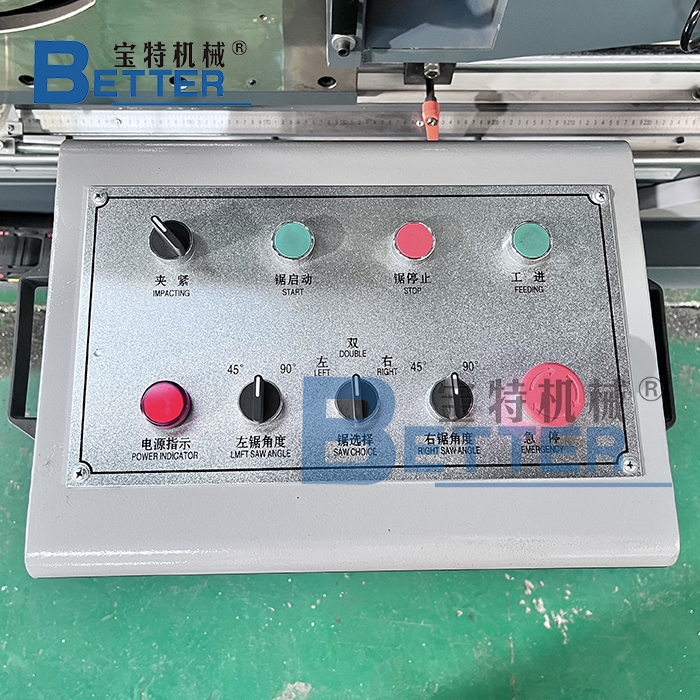

4. User-Friendly Operation: The intuitive control panel and clearly labeled buttons make the saw easy to operate, even for first-time users. It offers stable performance and reliable functionality during continuous production.
5. Saw Blade Options: The machine uses high-quality carbide alloy blades for clean and precise cuts. (Diamond blades optional). Blade sizes include 450mm, 500mm, 550mm, and 600mm to meet different cutting requirements.
6. High-precision cutting: 3kw main spindle motor is used to ensure smooth rotation of the saw blade and precise cutting.
7. Automatic spray system: Automatic spray device, effectively extending the life of cutters and ensuring the cleanliness of the cutting surface.

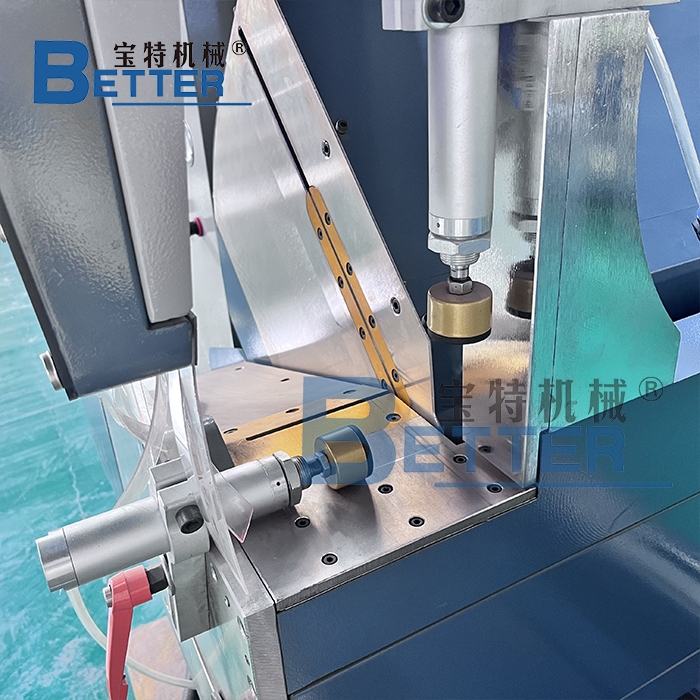

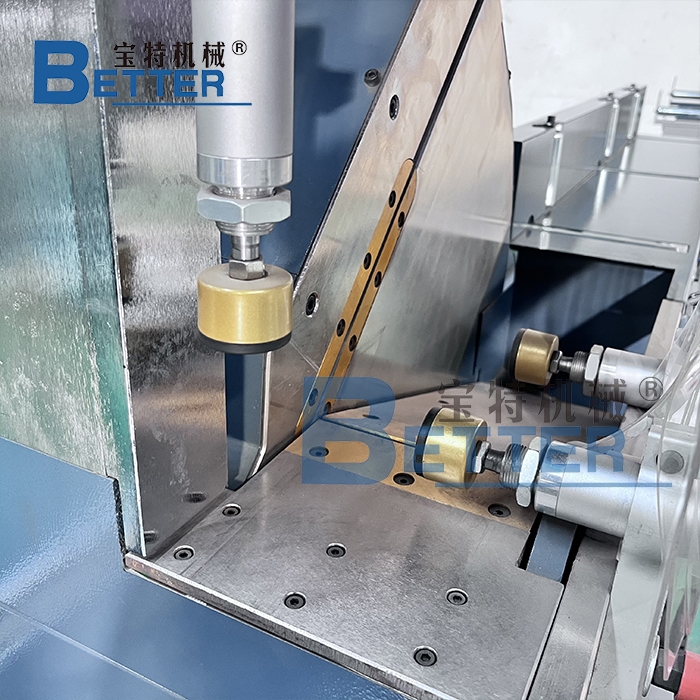

8. Pneumatic clamping system: Equipped with horizontal and vertical dual pneumatic clamping devices, it firmly fixes the profile and ensures cutting accuracy.
9. Stable operation:The servo motor and square guide rail are used, and the linear bearing motion pair is matched to ensure high motion accuracy, accurate positioning, and smooth cutting process.
10. Safety protection:During the cutting process, the protective cover will automatically drop to effectively prevent the dust generated during cutting from splashing and ensure the safety of the operator.
11. Options: CNC Double Head Mitre Saw Machine, Normal Double Head Cutting Saw, Single Head Cutting Saw for Aluminum Profile, Auto-feeding Cutting Machine

Video

https://youtube.com/shorts/1o7VPusl-gY?feature=share

Specifications

FAQ

• Jinan Better Machinery Co., Ltd

  Jinan Better Machinery Co., Ltd is located in Jinan, China. We have engaged in aluminum window machines, UPVC window machines, insualting glass machines and aluminum processing machines for more than 28 years. Started the international trade since 2004.

• Package & Transportation

  We support multiple shipping methods to meet different customer needs, including sea freight, land transportation, railway shipping and international express delivery. Depending on your location, order volume, and urgency, we will help you choose the most cost-effective and efficient shipping solution.

• Can you make customization base on my requirements?

  Yes, of course. We can make machine customization base on client’s requirements, no matter color, machine body or other technical needs.

• What necessary machines do I need to produce aluminum windows?

  Except the aluminum double head mitre saw, you have to use aluminum milling machine or CNC copy routing machine to mill holes, such as lock holes, handle hols and etc. Then, aluminum window end miller to mill the end surface of profile if you have mullion processing needs. After processing the aluminum profile, you need to use aluminum crimping machine to form frames and sashes.
