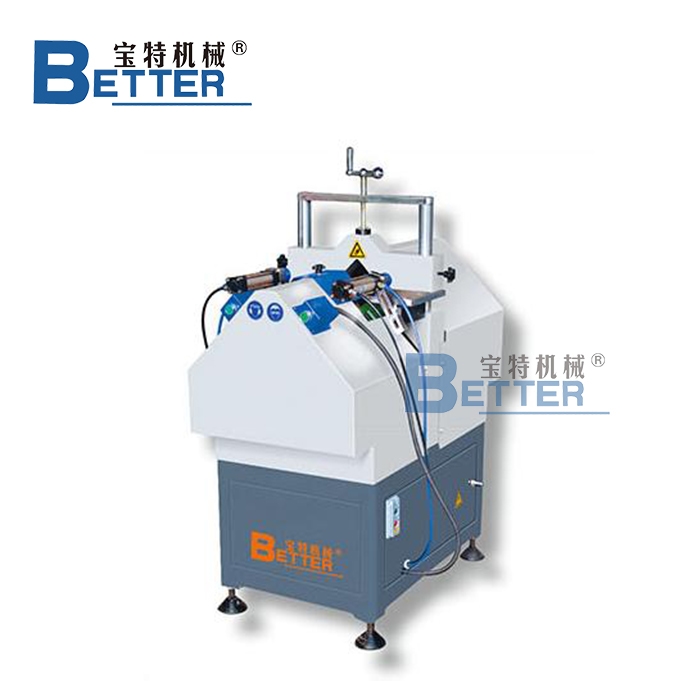

PVC V Notch Cutting Saw
Model: SVJ-65
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
UPVC Window Making machine
V groove cutting machine
Automatic V-notch Saw for PVC Window Frames
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
UPVC Window Making machine
V groove cutting machine
Automatic V-notch Saw for PVC Window Frames
PVC window and door V-notch cutting saw, V shape cutting machine for PVC profile, High precision V-notch saw for PVC windows
Product Details
Feature
PVC V Notch Cutting Saw is a specialized machine designed for precision cutting of V-shaped notches in UPVC window and door mullions. It ensures accurate angles and clean finishes, making it an essential tool in the corner welding process. By using a high-speed saw blade and stable clamping system, this machine guarantees consistent results and smooth operation. It is widely used in the fabrication of high-quality UPVC windows where mullions are fused seamlessly into frames. The PVC V notch cutting saw improves production efficiency, enhances joint strength, and ensures aesthetic window finishes. Ideal for manufacturers looking to streamline their UPVC window production process.
- Application: It is suitable for cutting V notch of uPVC window profile.
- Easy to use: Profile clamping and cutting are pneumatically driven,easy, safe and reliable.
- Solid structure: The whole machine has the characteristics of compact structure, good system rigidity, simple operation and high production efficiency.
- One step cutting: It can cut 120mm width profile with the V notch at one time.
- Easy to maintenance: Simple operation, easy to maintenance
Video
Specification
| Item | Value |
| Power input | 380V/220V 50Hz, base on request |
| Motor power | 2*1.5KW |
| Cutting height | 20~60mm |
| Cutting width | 0~120mm |
| Air consumption | 20L/min |
| Air pressure | 0.4-0.8MPa |
| Machine size | 1500*500*1300mm |
| Weight | 200KG |
