Automatic UPVC Water Slot Milling Machine
Model: SCX01-3
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
Automatic UPVC drain slot milling machine
PVC drainage hole milling machine
UPVC window making machines
Warranty: 2 years
Voltage: To be negotiated, customize according to needs
Automatic UPVC drain slot milling machine
PVC drainage hole milling machine
UPVC window making machines
UPVC window and door drain hole milling machine, Vinyl Window Making Machines, PVC Window Machines, Water Slot Milling Machine for PVC Window Profile, UPVC Milling Machine
Product Details
Features

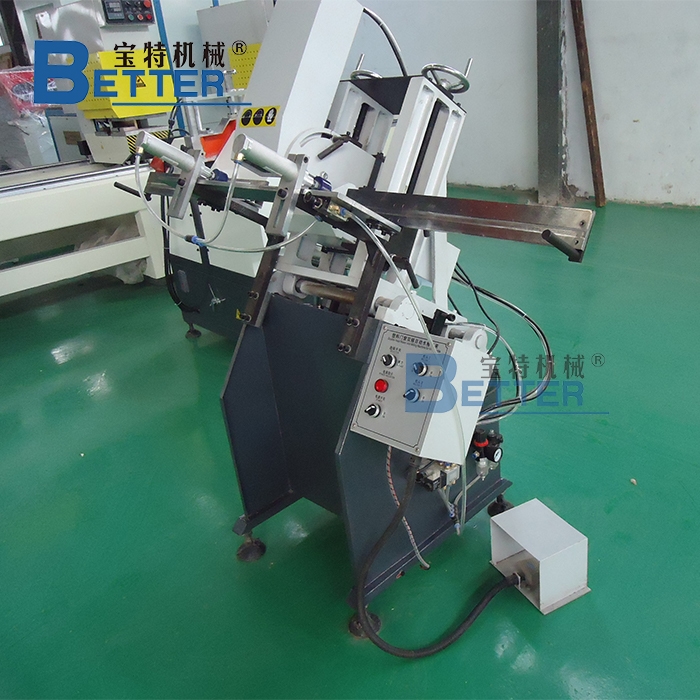

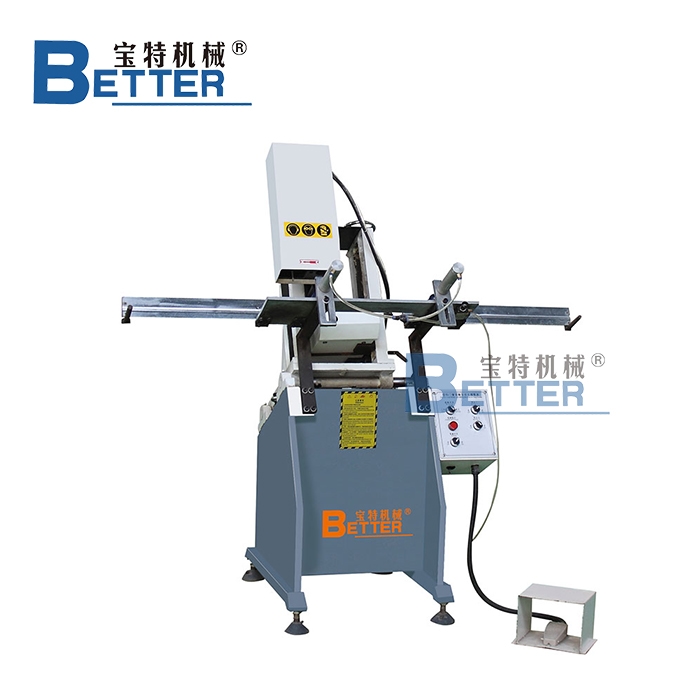

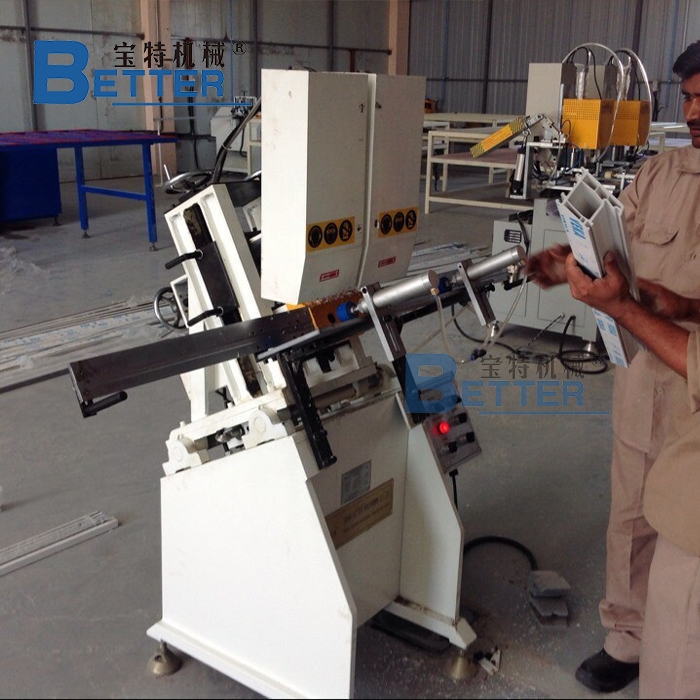

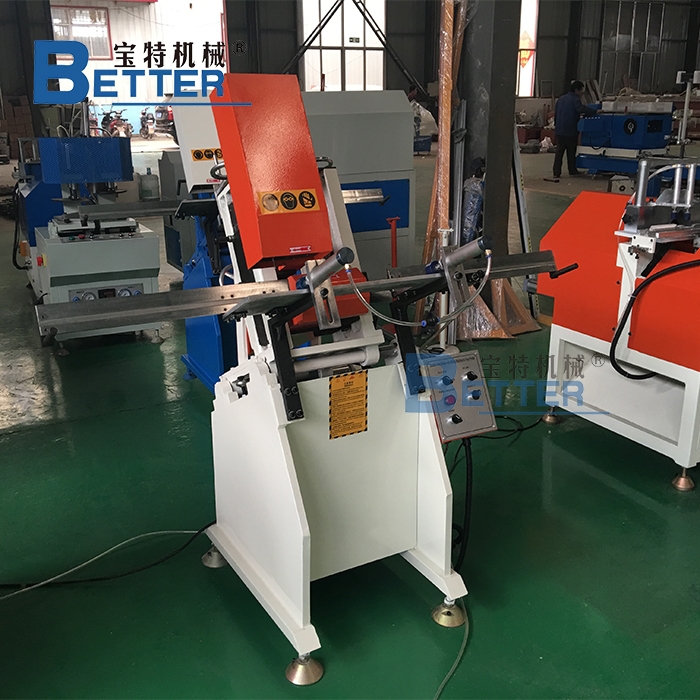

Automatic UPVC Water Slot Milling Machine efficiently mills water drainage slots on UPVC window and door profiles. This specialized machine ensures proper drainage and enhances the durability of finished UPVC window systems. Easily adjust the angle and depth to perform horizontal and vertical slot milling, as well as angle milling with precision. As a result, it is an ideal UPVC window making machine.

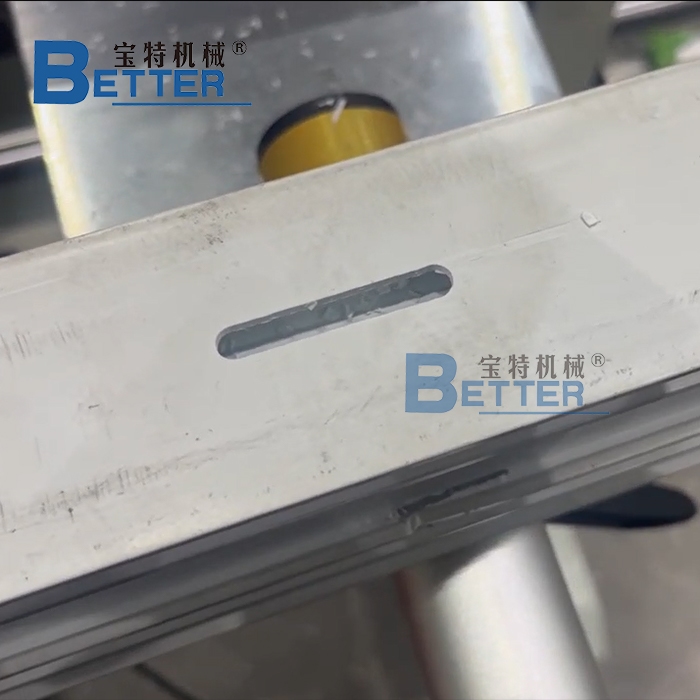

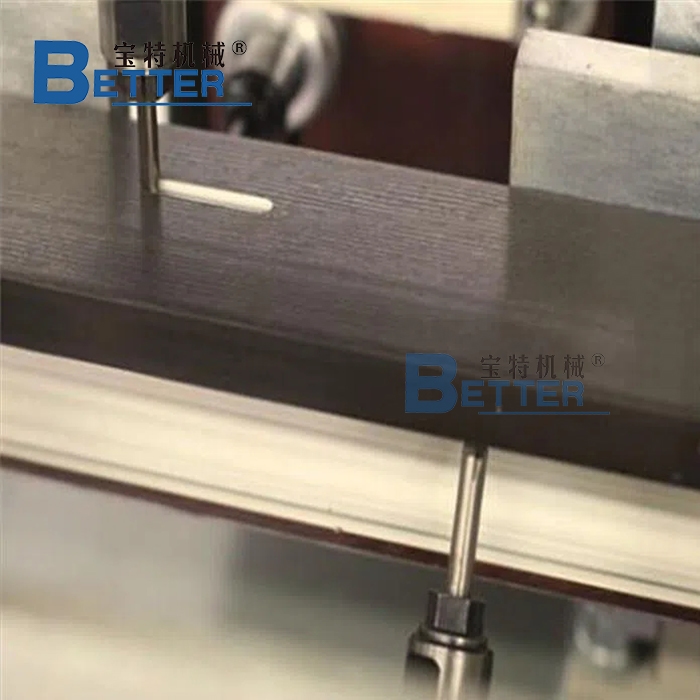

- Application: It is used for milling water slot, air pressure balance grooves of uPVC window.
- Efficient: One clamping can realize the processing of slots indifferent directions.
- Adjustable: Milling length adjustable within a 60mm range, offering broad application flexibility. Easily adjust tool to accommodate different types of profiles.
- Solid structure: The whole machine has the characteristics of compact structure, good system rigidity, simple operation and high production efficiency.
- Easy to maintenance: Simple operation, easy to maintenance.
- Options: double axis UPVC drain slot milling machine, three axis UPVC drainage hole milling machine, double head water slot milling machine for UPVC window profile.
Video
Specifications
Item | Value |
Power input | 380V/220V 50Hz, base on request |
Motor power | 3*0.38KW |
Milling length | 30~60mm |
Milling depth | 30mm |
Tool diameter | Φ4mm Φ5mm |
Air pressure | 0.4-0.8MPa |
Machine size | 1980*750*1600mm |
Weight | 300KG |
Necessary Machines for Making UPVC Windows
- How to Make UPVC Windows?
- Related UPVC window making machine
- Except the automatic UPVC water slot milling machine, you have to get some other necessary machines to make a good UPVC windows. Firstly, cutting UPVC profiles by a single head UPVC cutting machine or double head UPVC cutting machine. Secondly, milling various holes, such as lcok holes, handle holes and etc. by UPVC milling machine. Next, welding profiles by a double head upvc welding machine. If you have angle welding requirements, you may also need a various angle single head upvc welding machine. Cleaning welding overlaps by using a CNC corner cleaning machine for UPVC profile.
